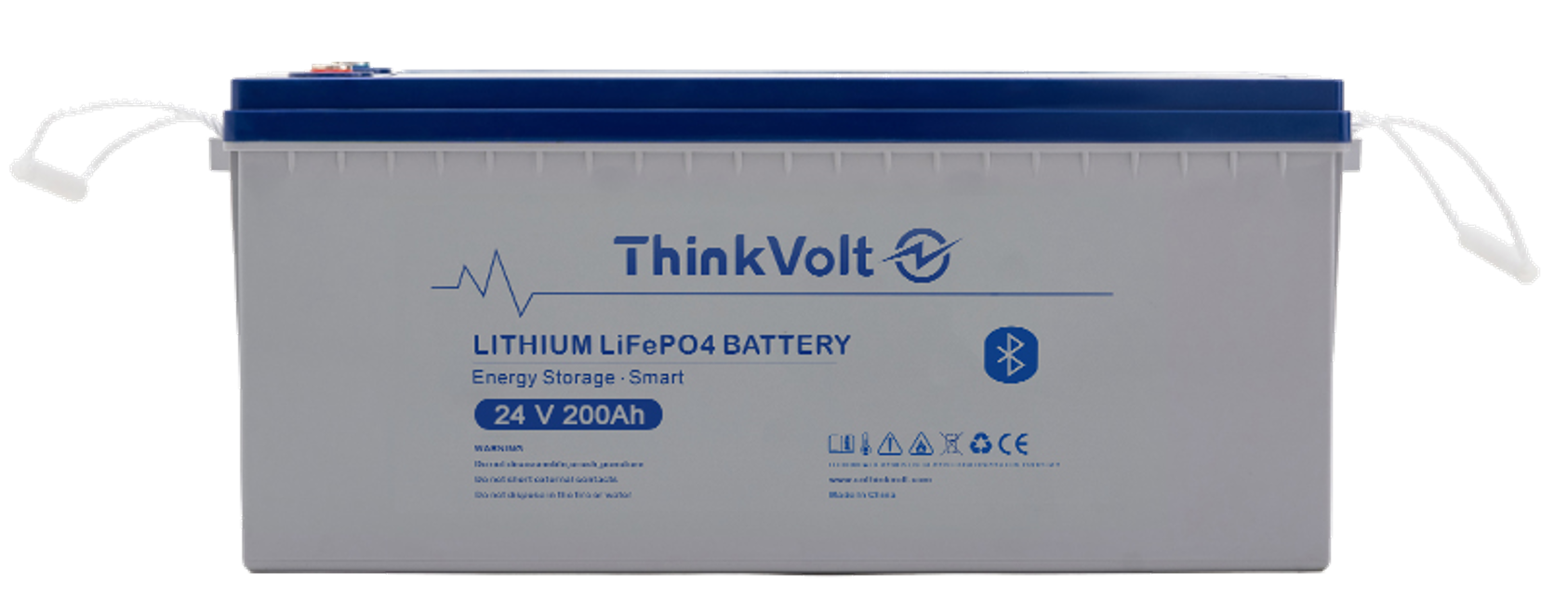

TVLI-24200
24V200Ah Lithium LiFePO4 Battery
| Item | Specifications |
|---|---|
| Model | TVLI-24200 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200AH |
| Energy | 5.12KWH |
| Rated Charge Current | 100A |
| Max. Charge Current | 200A |
| Rated Charge Voltage | 27.2~27.6V |
| Charge Cut-off Voltage | 29.2V |
| Balancing Voltage | >27.2V |
| Rated Discharge Current | 100A |
| Max. Discharge Current | 200A |
| Rated Discharge Cut-off Voltage | 22.4V |
| Min. Discharge Cut-off Voltage | >20V |
| Short Circuit Current | Approx. 1800A |
| Cycle Life | ≥6000 times(80%DOD) |
| Bluetooth | YES |
| Storage Temperature | -5°C ~ 35°C |
| Battery Max Parallel Number | 4 |
| Dimension | 522*244*223MM |
| Weight | 37.0KG |
| Certificate | Cell: CE/UN38.3/UL1973 Battery: CE/UN38.3/IEC62619 Transport Appraisal: UN3480,CLASS 9 |

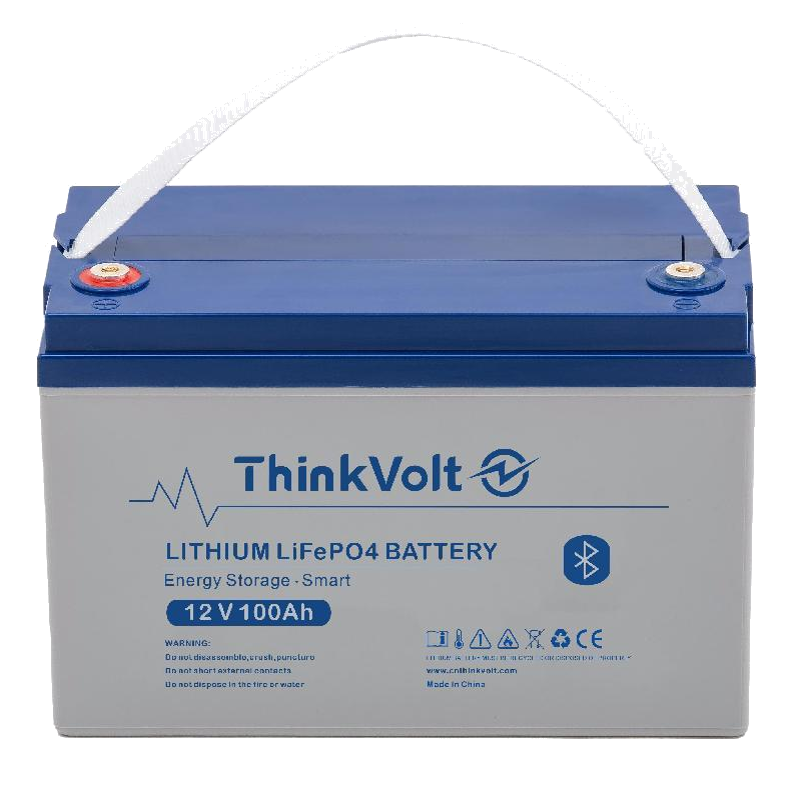

12V100Ah Lithium LiFePO4 Battery
Nominal Voltage：12.8V
Nominal Capacity：100AH
Energy：1.28KWH
Rated Charge Current：50A
Max. Charge Current：100A

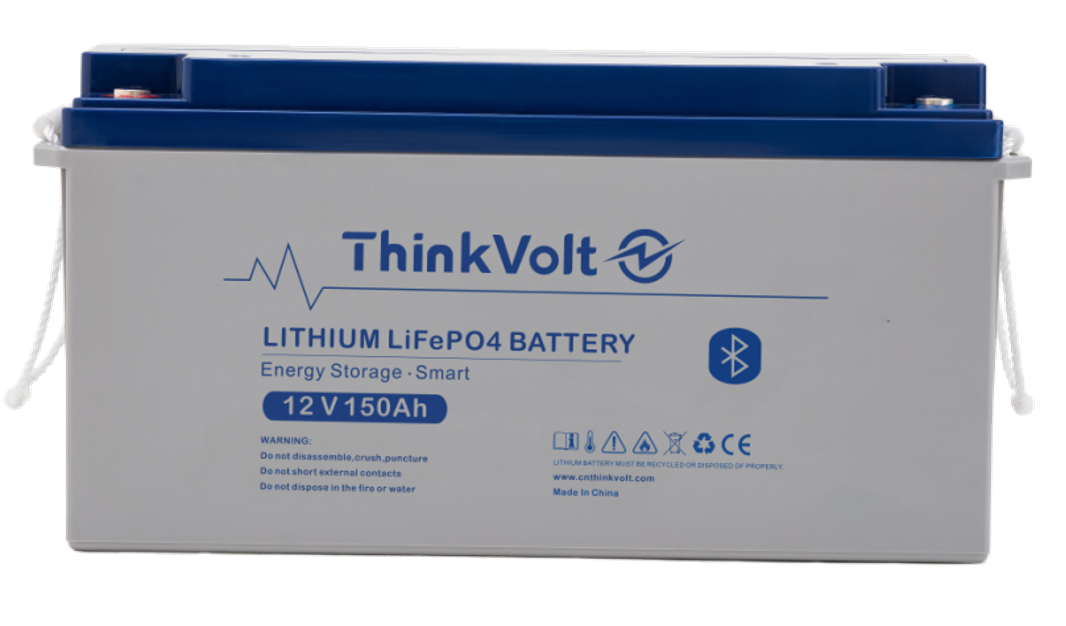

12V150Ah Lithium LiFePO4 Battery
Nominal Voltage：12.8V
Nominal Capacity：150AH
Energy：1.92KWH
Rated Charge Current：75A
Max. Charge Current：150A

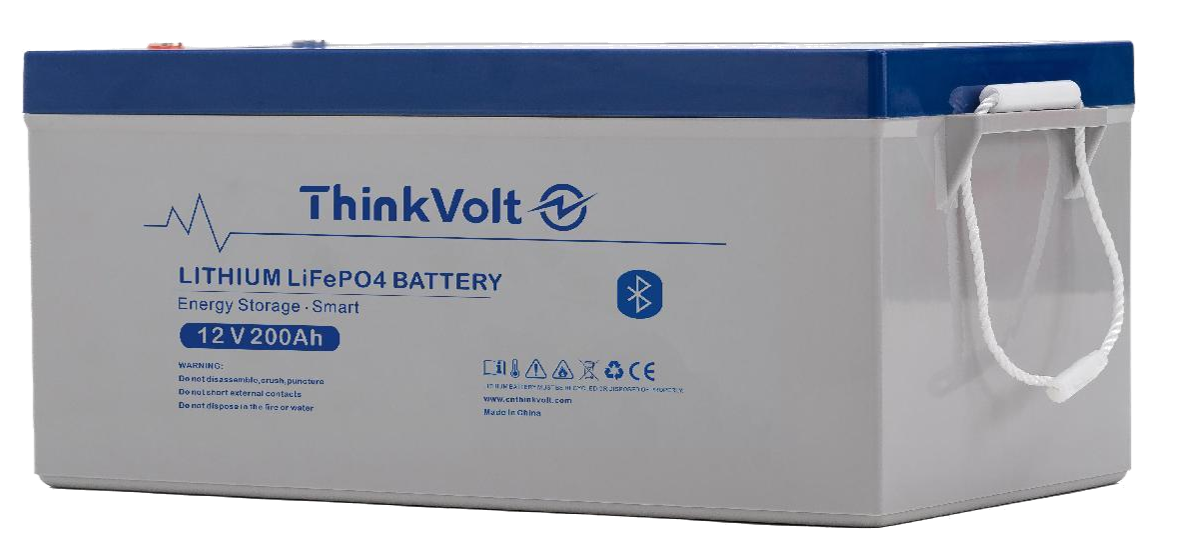

12V200Ah Lithium LiFePO4 Battery
Nominal Voltage：12.8V
Nominal Capacity：200AH
Energy：2.56KWH
Rated Charge Current：100A
Max. Charge Current：200A
24V100Ah Lithium LiFePO4 Battery
Nominal Voltage：25.6V
Nominal Capacity：100AH
Energy：2.56KWH
Rated Charge Current：50A
Max. Charge Current：100A
