All In One ESS

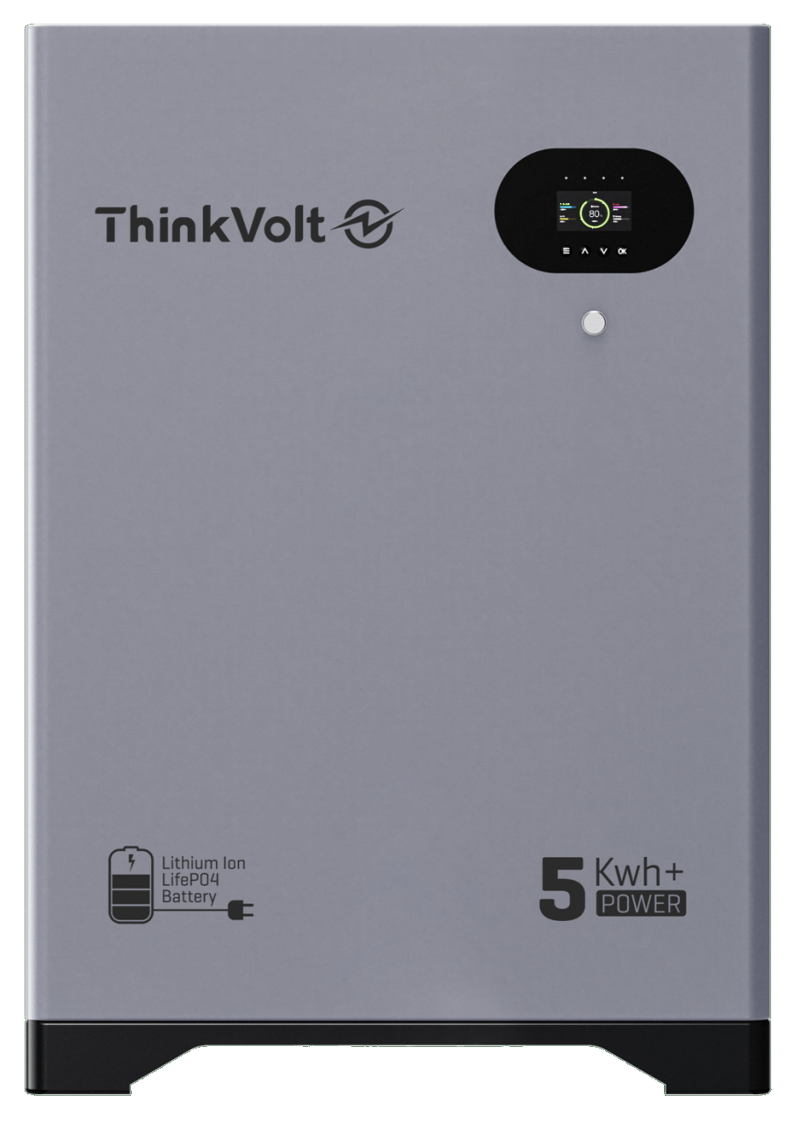

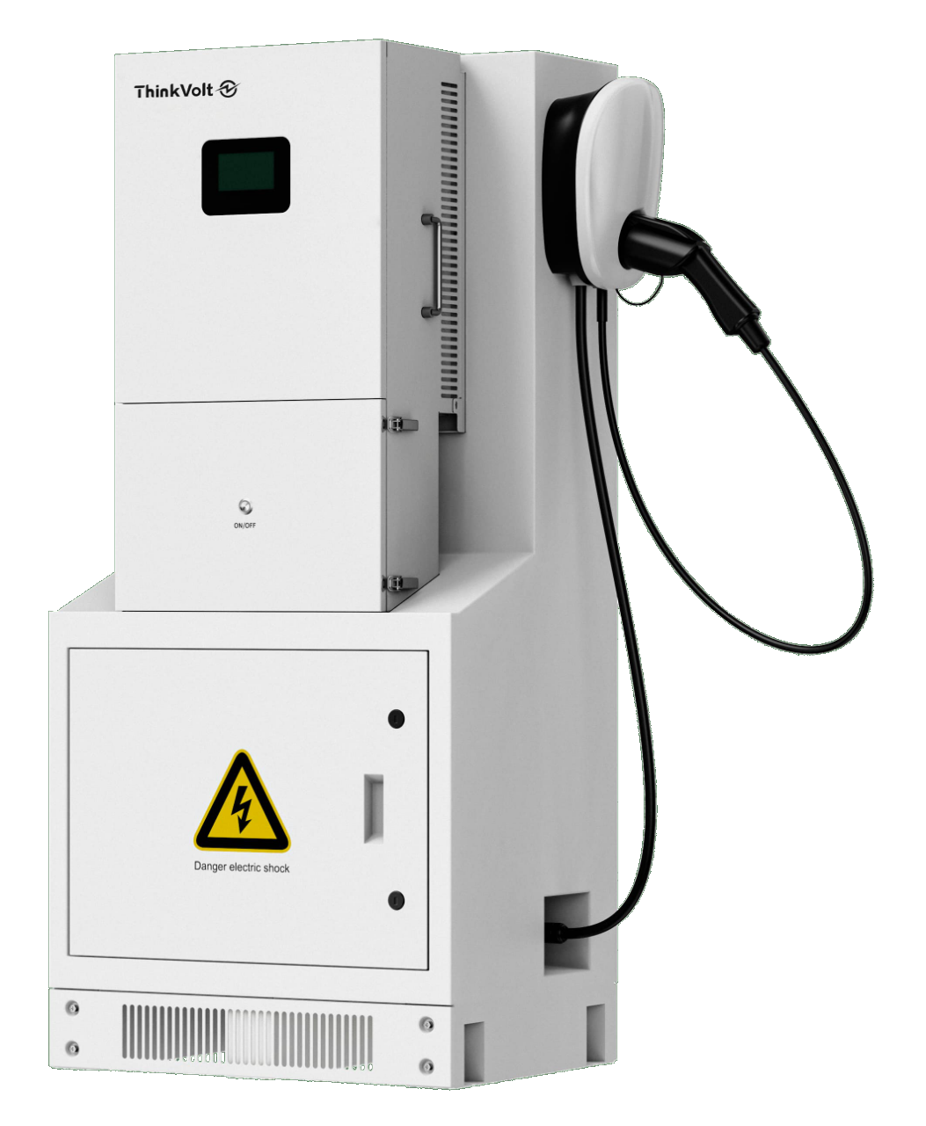

TV-5K-5KWH
| Item | Specifications |
|---|---|
| Model | TV-5K-5KWH |
| AC Input | -------------------------------------- |
| Rated Input Voltage(VAC) | 208, 220, 230, 240;L+N+PE |
| Voltage Range(VAC) | 90~280±3（normal mode）；170~280±3（UPS mode） |
| Frequency(Hz) | 50, 60(Auto Adaptive) |
| AC Output | -------------------------------------- |
| Rated Capacity(kW) | 5 |
| Peak Power(kVA) | 10 |
| Rated Voltage(VAC) | 208, 220, 230, 240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 20(normal mode) , 10(UPS mode) |
| Wave Form | Pure Sine Wave |
| OverLoad Capacity(Battery Mode) | 60s@102%~110%load;10s@110%~130%load; 3s@130%~150%load;0.2s@＞150%load |
| Max.Efficiency(Battery Mode) | 94% |
| Charger(PV/AC) | -------------------------------------- |
| Solar Charger Type | MPPT |
| Max PV input power(kW) | 6 |
| MPPT Range@Operating Voltage(VDC) | 120~450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current(A) | 80 |
| Max AC Charge Current(A) | 80 |
| Max.Charge Current(Only PV or AC) (A) | 80 |
| Battery | -------------------------------------- |
| Normal Voltage(VDC) | 51.2 |
| Capacity(Ah) | 100 |
| Energy(Kwh) | 5.12 |
| Charge Voltage(VDC) | 57.6 |
| Overcharge Protection(VDC) | 58.4 |
| Battery type | LFP |
| Interface | -------------------------------------- |
| HMI | LCD |
| Interface | RS232/USB |
| Monitoring | WiFi(Optional) |
| General Data | -------------------------------------- |
| Ingress Protection | IP20 |
| Operating Temperature | 0~50℃ |
| Relative Humidity | 20%~95%(Non-condensing) |
| Storage Temperature | -15℃~60℃ |
| Net Weight(kg) | 68 |
| Dimensions(W*D*H) | 598*200*794mm |
| Max.Operating Altitude | 4000m (Derating above 1000m) |
| Noise Emission | ≤50dB |

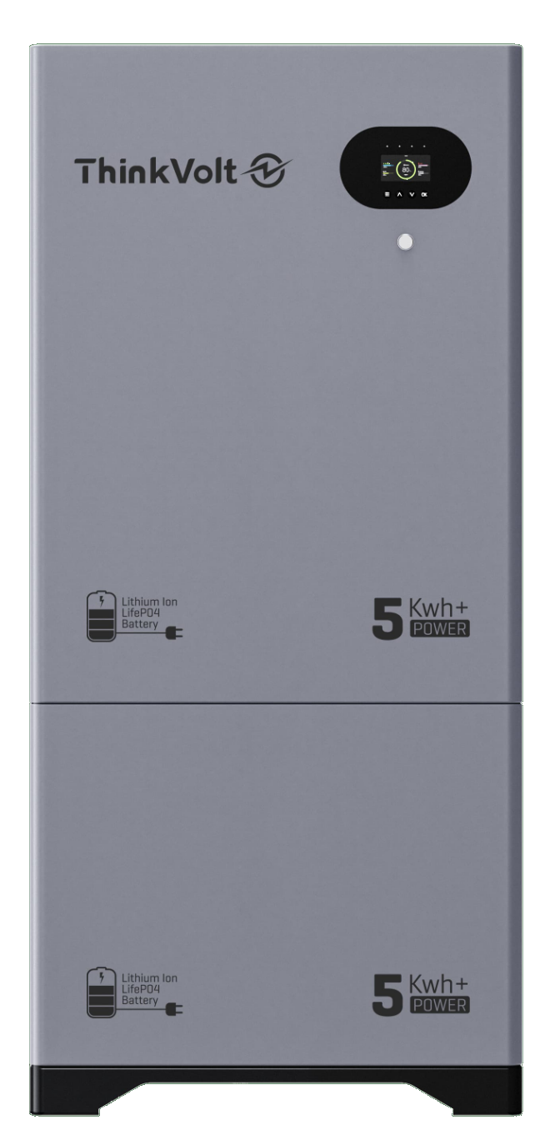

TV-5K-10KWH
Normal Voltage(VDC)：51.2
Capacity(Ah)：200
Energy(Kwh)：10.24
Net Weight(kg)：118
Dimensions(W*D*H)：598*200*1224mm
TV-5K-15KWH
Normal Voltage(VDC)：51.2
Capacity(Ah)：300
Energy(Kwh)：15.36
Net Weight(kg)：168
Dimensions(W*D*H)：598*200*1654mm
