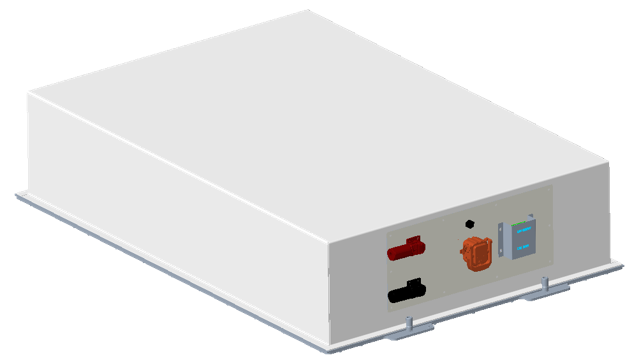

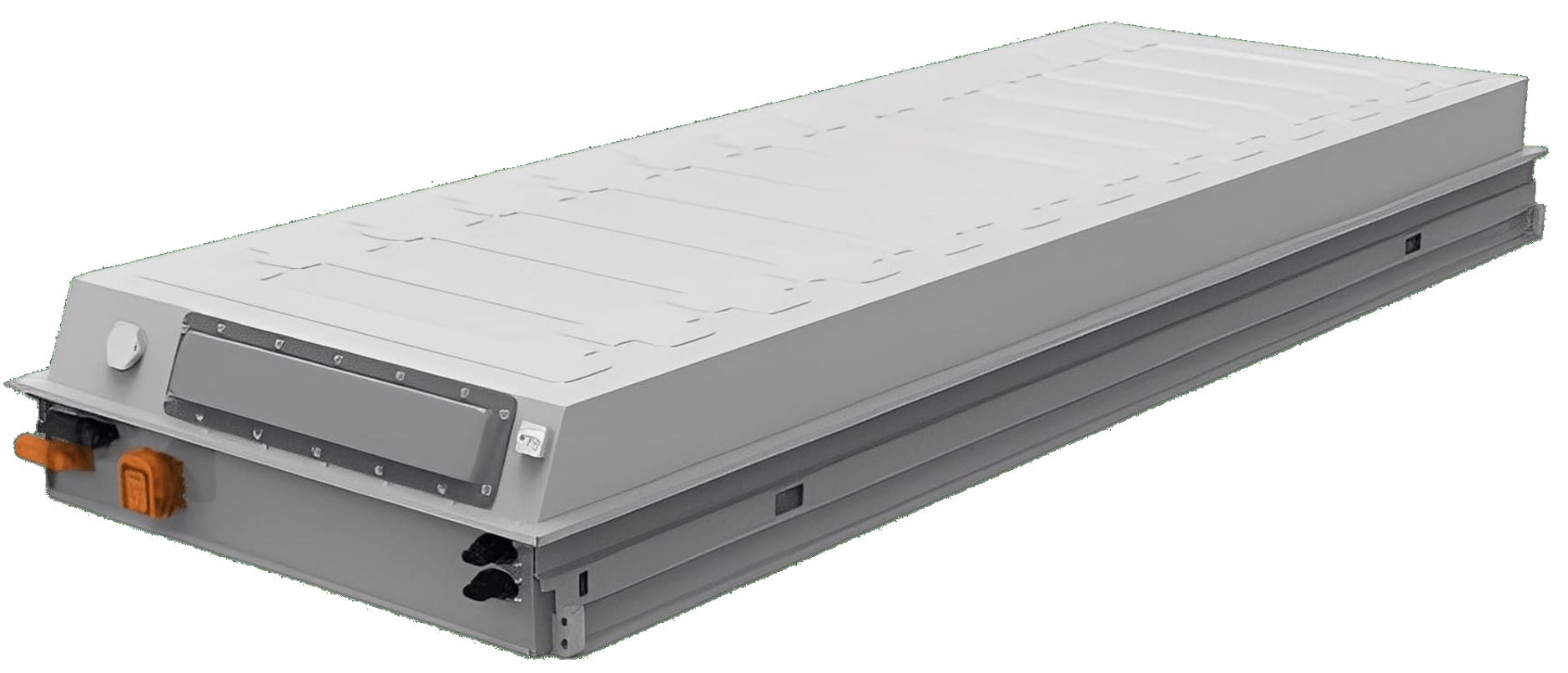

52S liquid cooling module
52S liquid cooling module
| Item | Specifications |
|---|---|
| System capacity | 314Ah |
| System voltage | 166.4V |
| Grouping method | 1P52S |
| System energy | 52.249kWh |
| Operating voltage range | 130~187.2Vdc |
| Operating temperature range | Charge：0℃ ~55℃; Discharge：-20℃ ~60℃ |
| Storage temperature range | -5℃ ~35℃ |
| Communication | CAN |
| Protection level | IP65 |
| Thermal management strategy | Liquid cooling |
| Dimensions (Length * Width * Height) | 1150*787*258.5 mm |
50K - 129KWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
Inverter power：50kw
Rated energy：129kWh
Battery temperature control method：Liquid cooling
100k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling

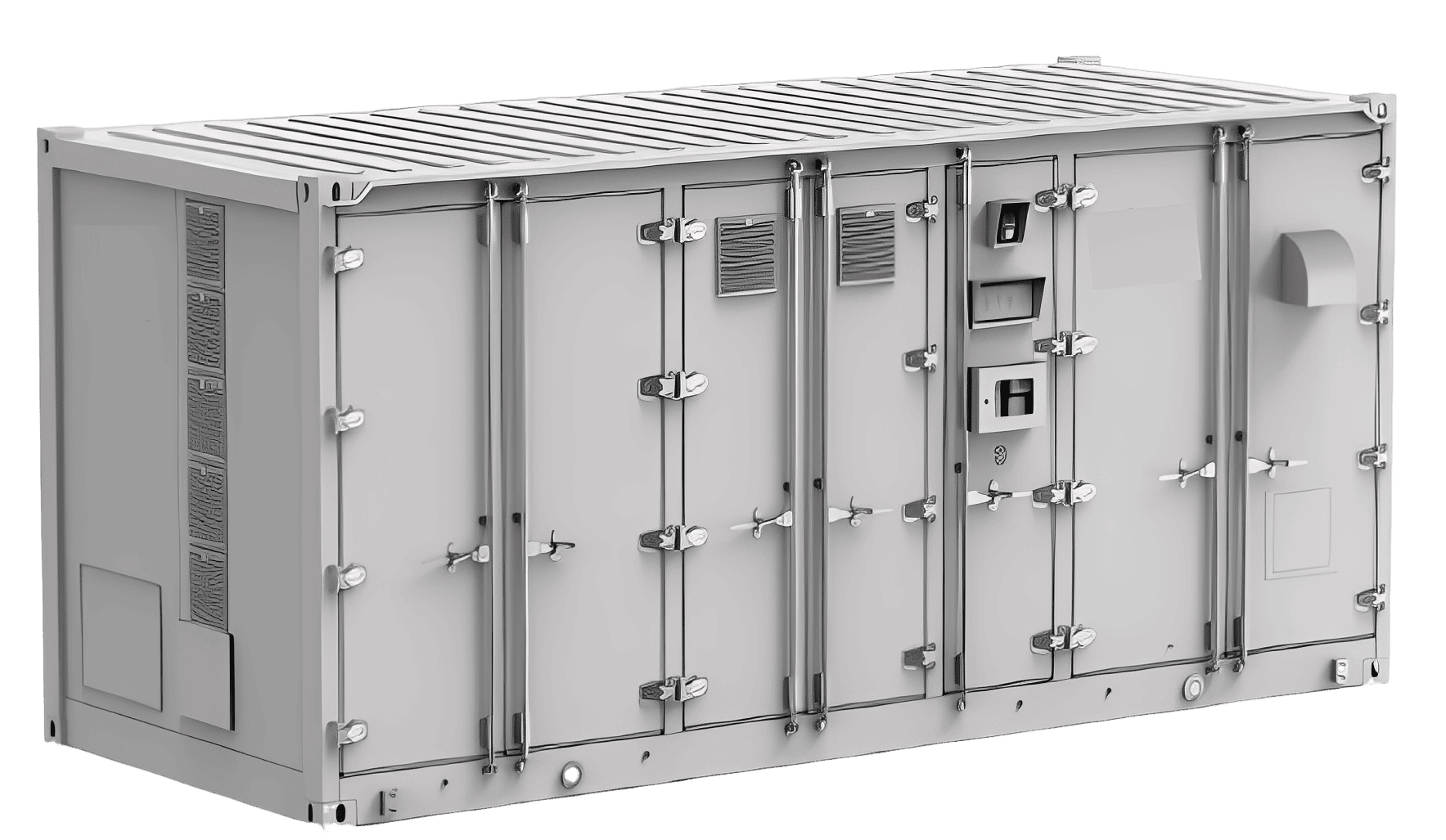

TV 2.5MW - 5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*12
Rated energy：5.015MWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
Inverter power：50kw*2
Rated energy：215kWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
PCS power：100kw
Rated energy：215kWh
Battery temperature control method：Liquid cooling
135k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：135kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling

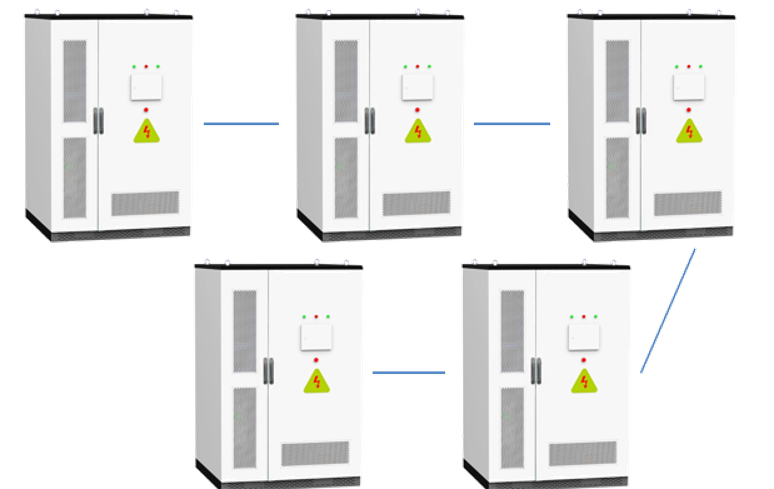

100k-261liquid-cooled cabinet*5
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw*5
Rated energy：261kWh*5
Battery temperature control method：Liquid cooling
TV1.25MW-2.5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*6
Rated energy：2.507MWh
Battery temperature control method：Liquid cooling

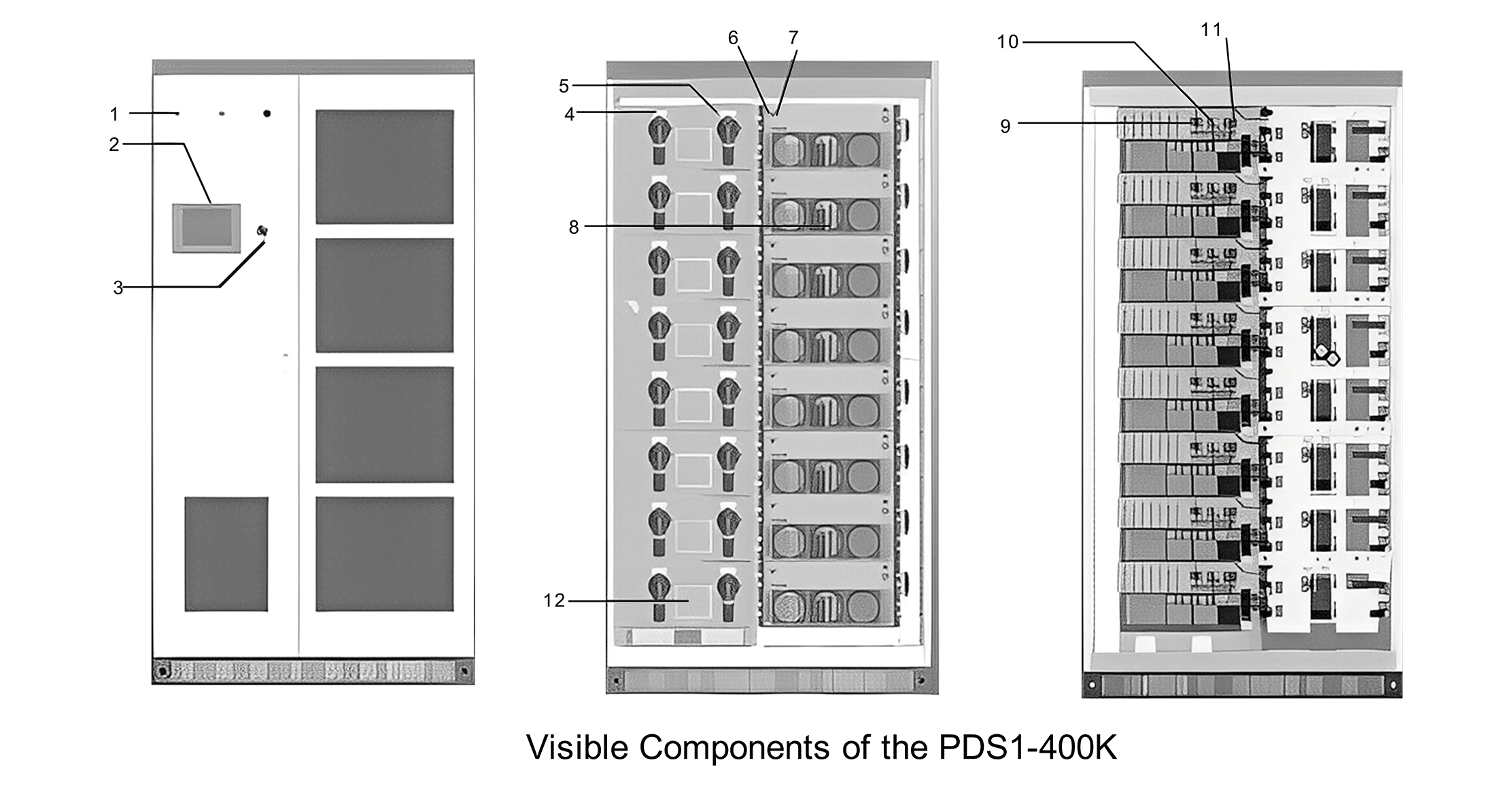

PDS1-400K
HV DC bus voltage：LV voltage +40V ~ 900V
Cooling：Forced air cooling
Noise：<75dB
Size (W×H×D)：1100×2160×800mm
Installation：Floor standing

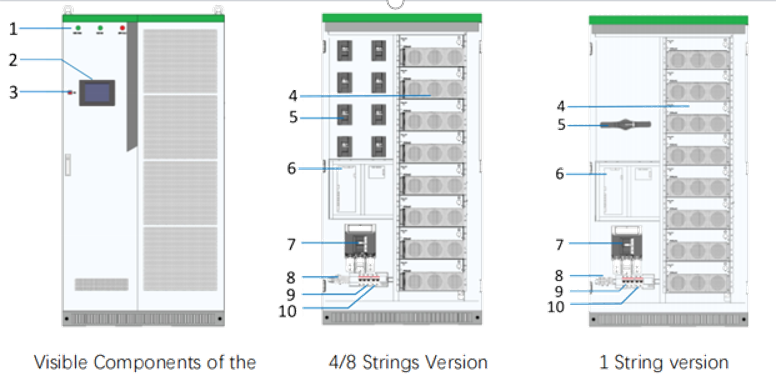

PWS1-500KTL-EX-8M1/PWS1-500KTL-EX-8M4/PWS1-500KTL-EX-8M8
Nominal power：500kVA1
AC max power：550kVA1
Battery voltage range：600~900Vdc
Cooling：Forced air cooling
48S liquid cooling module
System capacity：280Ah
System voltage：153.6V
Grouping method：1P48S
Dimensions (Length * Width * Height)：795*1125*228 mm
104S liquid cooling module
System capacity：314Ah
System voltage：332.8V
Grouping method：1P104S
Dimensions (Length * Width * Height)：2170*790*247 mm

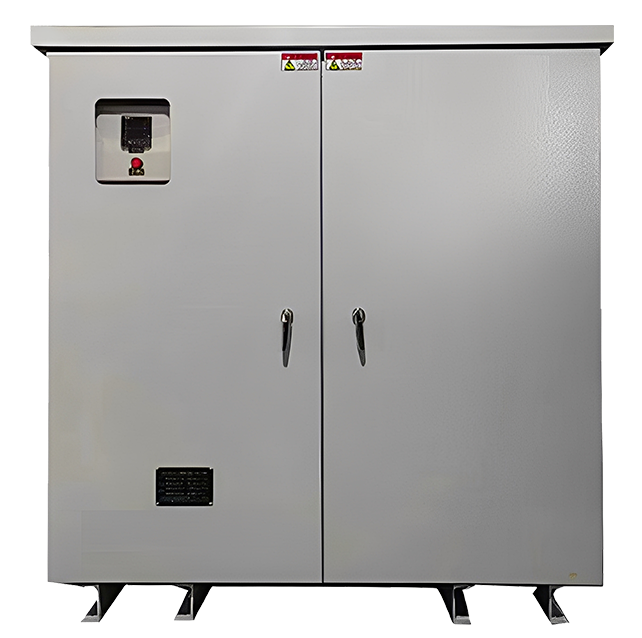

Isolation transformer
Rated Input Voltage：400V±3%
Rated Output Voltage：400V±3% 230V±3%
Rated Apparent Power：315kVA
Working Frequency：47.5 - 55Hz
Rated Load Line Current：453A

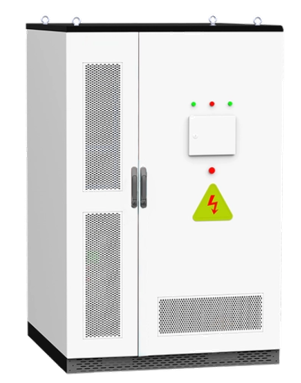

Liquid cooled energy storage cabinet
Energy storage capacity：215kWh/233kWh/249kWh
Rated power：105KW/120KW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage cabinet
Energy storage capacity：372kWh/400kWh
Rated power：200KWh
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage system
Energy storage capacity：3350kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage system
Energy storage capacity：2600kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP67
Air-cooled energy storage system
Energy storage capacity：645kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
Air-cooled energy storage system
Energy storage capacity：1075kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
