TVES-48200L

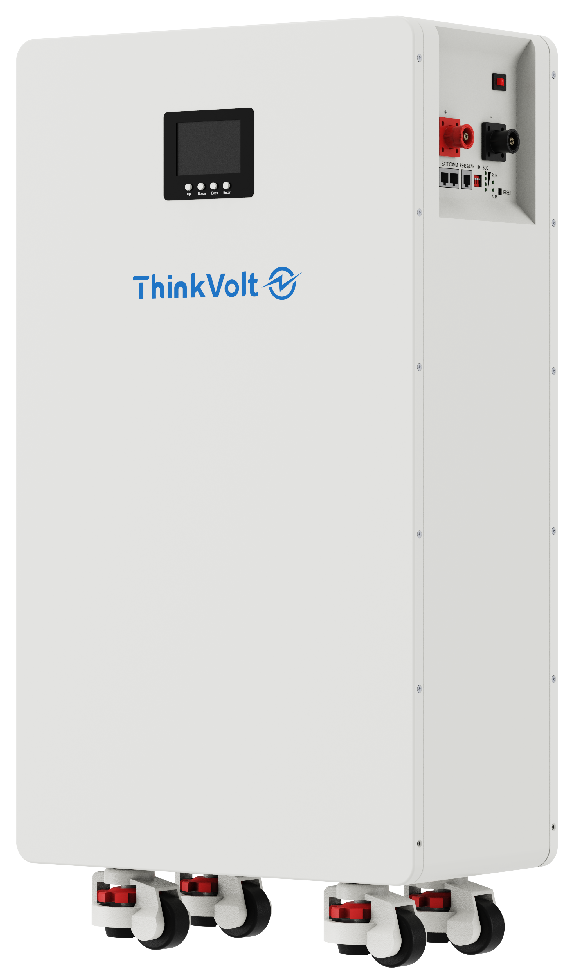

51.2V200Ah Lithium LiFePO4 Battery Landing
| Item | Specifications |
|---|---|
| Model | TVES-48200L |
| Rated Capacity | 200Ah |
| Rated Energy | 10240Wh |
| Rated Voltage | 51.2V |
| Operating Voltage Range | 43.2～57.6V |
| Charge Cut-off Voltage | 57.6V |
| Discharge Cut-off Voltage | 43.2V |
| Configuration | 1P16S |
| Internal Resistance | ≤6.4mΩ |
| SOC Operating Range | 15%~95% |
| Charge/Discharge Efficiency | ≥95% |
| Self-discharge Rate / Month | ≤3%,25℃ |
| Maximum Continuous Charge Current | 100Ah |
| Maximum Continuous Discharge Current | 100Ah |
| Cycle Life (cycles) | ＞5000 (@25℃, 85%DOD) |
| Charge Temp | 0℃~55℃ (Below 5℃, charge with 5A current) |
| Discharge Temp | -20℃~60℃ |
| Rec Storage Temp | -10℃~30℃ |
| Environmental Humidity | 5%~95% |
| Dimensions (WDH) | 442*730*230 mm |
| Weight | ≤88Kg |
| Cooling Method | Natural Convection |
| Protection Rating | IP20 |
51.2V100Ah Lithium LiFePO4 Battery Power Wall
Rated Capacity：100Ah
Rated Energy：5120Wh
Rated Voltage：51.2V
Operating Voltage Range：43.2～57.6V
Dimensions (WDH)：442*550*136 mm
Weight：≤43Kg
51.2V300Ah Lithium LiFePO4 Battery Landing
Rated Capacity：314Ah
Rated Energy：16076.8Wh
Rated Voltage：51.2V
Operating Voltage Range：43.2～57.6V
Dimensions (WDH)：442*840*240 mm
Weight：≤126Kg
51.2V100Ah Lithium LiFePO4 Battery Rack Mounted
Rated Capacity：100Ah
Rated Energy：5120Wh
Rated Voltage：51.2V
Operating Voltage Range：43.2～57.6V
Dimensions (WDH)：442*420*130 mm
Weight：≤46Kg
25.6V100Ah Lithium LiFePO4 Battery Power Wall
Rated Capacity：100Ah
Rated Energy：2560Wh
Rated Voltage：25.6V
Operating Voltage Range：21.6～28.8V
Dimensions (WDH)：442*400*136 mm
Weight：≤29Kg
25.6V200Ah Lithium LiFePO4 Battery Power Wall
Rated Capacity：200Ah
Rated Energy：5120Wh
Rated Voltage：25.6V
Operating Voltage Range：21.6～28.8V
Dimensions (WDH)：500*500*136 mm
Weight：≤47Kg
