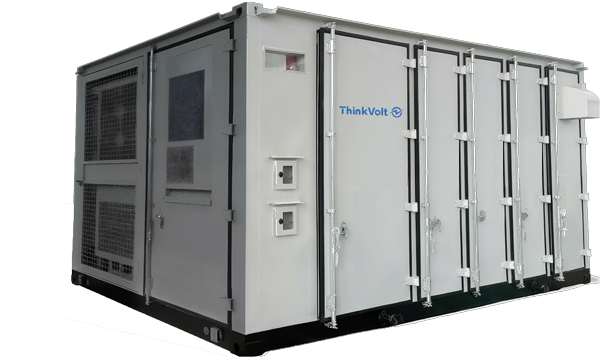

G20-TVN-ESS
Liquid cooled energy storage system
| Item | Specifications |
|---|---|
| Model number | G20-TVN-ESS |
| Energy storage capacity | 3350kWh |
| Auxiliary power supply | ~20kW |
| Battery management system | Integration |
| Battery type | Lithium iron phosphate Battery |
| Maximum charge and discharge ratio | 0.5C/0.5C (sustainable) |
| Cooling mode | Liquid cooling |
| Protection level of electric box | IP65 |
| Operating temperature | -25~55℃ |
| Relative humidity | 0~95%, no condensation |
| Fire protection system | Precision fire protection (up to electrical box level) |
| Operating temperature difference | ≤4℃ (national standard condition, 0.5C charge and discharge) |
| Battery compartment protection level | IP54 |
| Communication mode | Ethernet (optional 4G) |
| Main configuration | 280Ah battery core, liquid cooling system, fire fighting system, PCS system, isolation transformer, energy storage prefabrication compartment |
| Size(L*W*H)(mm) | 6058*2438*2896 |
| Weight | ~25T |
| Cell type | 3.2V280Ah |
| Cell cycle life | ≥10000times (25℃,0.5C charge and discharge) |

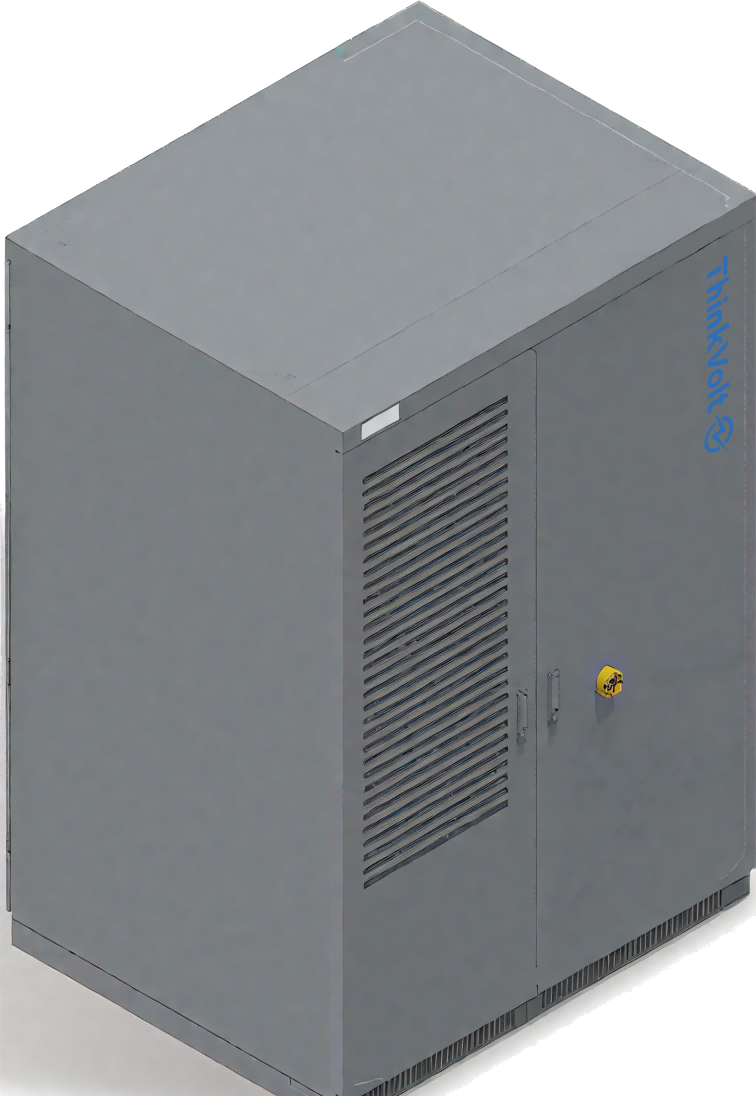

Liquid cooled energy storage cabinet
Energy storage capacity：215kWh/233kWh/249kWh
Rated power：105KW/120KW
Cooling mode：Liquid cooling
Protection level of electric box：IP65

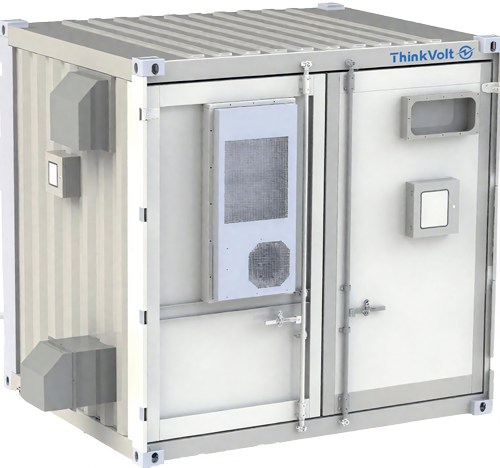

Liquid cooled energy storage system
Energy storage capacity：2600kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP67
Liquid cooled energy storage cabinet
Energy storage capacity：372kWh/400kWh
Rated power：200KWh
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Air-cooled energy storage system
Energy storage capacity：645kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
Air-cooled energy storage system
Energy storage capacity：1075kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
