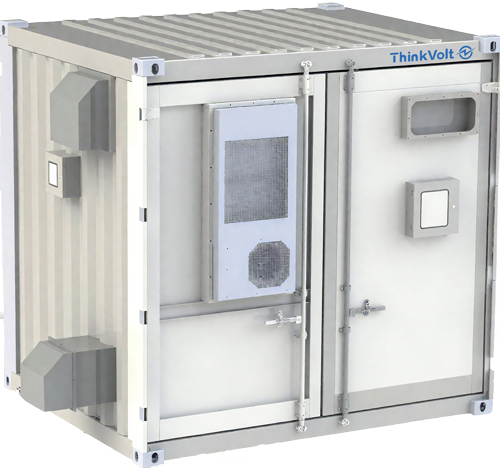

G20P-TVN-ESS
Liquid cooled energy storage system
| Item | Specifications |
|---|---|
| Model number | G20P-TVN-ESS |
| Energy storage capacity | 2600kWh |
| Rated power | 1000kW/1260kW |
| Grid access parameters | 380Vac@50Hz |
| Auxiliary power supply | ~20kW |
| Battery management system | Integration |
| Battery type | Lithium iron phosphate Battery |
| Maximum charge and discharge ratio | 0.5C/0.5C (sustainable) |
| Cooling mode | Liquid cooling |
| Protection level of electric box | IP67 |
| Operating temperature | -25~55℃ |
| Relative humidity | 0~95%, no condensation |
| Fire protection system | Precision fire protection (up to electrical box level) |
| Operating temperature difference | ≤4℃ (national standard condition, 0.5C charge and discharge) |
| Battery compartment protection level | IP54 |
| Communication mode | Ethernet (optional 4G) |
| Main configuration | 280Ah battery core, liquid cooling system, fire fighting system, PCS system, isolation transformer, energy storage prefabrication compartment |
| Size(L*W*H)(mm) | 6058*2438*2896 |
| Weight | ~25T |
| Cell type | 3.2V280Ah |
| Cell cycle life | ≥10000times (25℃,0.5C charge and discharge) |
50K - 129KWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
Inverter power：50kw
Rated energy：129kWh
Battery temperature control method：Liquid cooling
100k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling
TV 2.5MW - 5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*12
Rated energy：5.015MWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
Inverter power：50kw*2
Rated energy：215kWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
PCS power：100kw
Rated energy：215kWh
Battery temperature control method：Liquid cooling
135k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：135kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling
100k-261liquid-cooled cabinet*5
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw*5
Rated energy：261kWh*5
Battery temperature control method：Liquid cooling
TV1.25MW-2.5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*6
Rated energy：2.507MWh
Battery temperature control method：Liquid cooling
PDS1-400K
HV DC bus voltage：LV voltage +40V ~ 900V
Cooling：Forced air cooling
Noise：<75dB
Size (W×H×D)：1100×2160×800mm
Installation：Floor standing
PWS1-500KTL-EX-8M1/PWS1-500KTL-EX-8M4/PWS1-500KTL-EX-8M8
Nominal power：500kVA1
AC max power：550kVA1
Battery voltage range：600~900Vdc
Cooling：Forced air cooling
48S liquid cooling module
System capacity：280Ah
System voltage：153.6V
Grouping method：1P48S
Dimensions (Length * Width * Height)：795*1125*228 mm
52S liquid cooling module
System capacity：314Ah
System voltage：166.4V
Grouping method：1P52S
Dimensions (Length * Width * Height)：1150*787*258.5 mm
104S liquid cooling module
System capacity：314Ah
System voltage：332.8V
Grouping method：1P104S
Dimensions (Length * Width * Height)：2170*790*247 mm
Isolation transformer
Rated Input Voltage：400V±3%
Rated Output Voltage：400V±3% 230V±3%
Rated Apparent Power：315kVA
Working Frequency：47.5 - 55Hz
Rated Load Line Current：453A

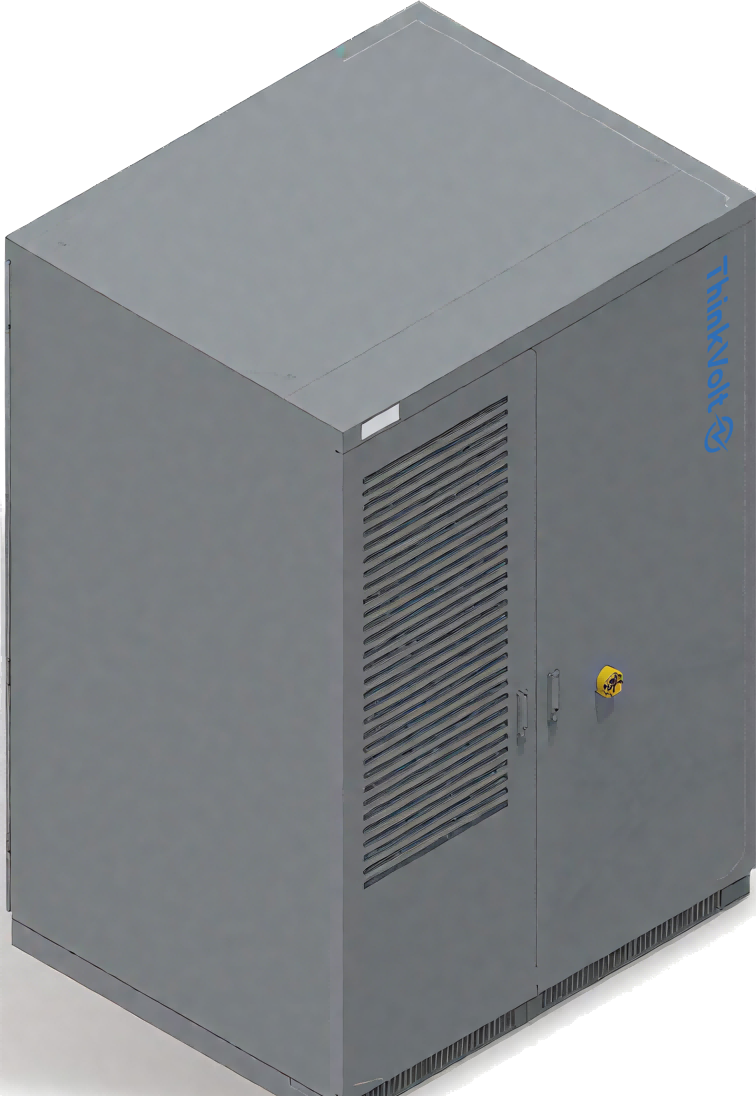

Liquid cooled energy storage cabinet
Energy storage capacity：215kWh/233kWh/249kWh
Rated power：105KW/120KW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage cabinet
Energy storage capacity：372kWh/400kWh
Rated power：200KWh
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage system
Energy storage capacity：3350kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Air-cooled energy storage system
Energy storage capacity：645kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
Air-cooled energy storage system
Energy storage capacity：1075kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
