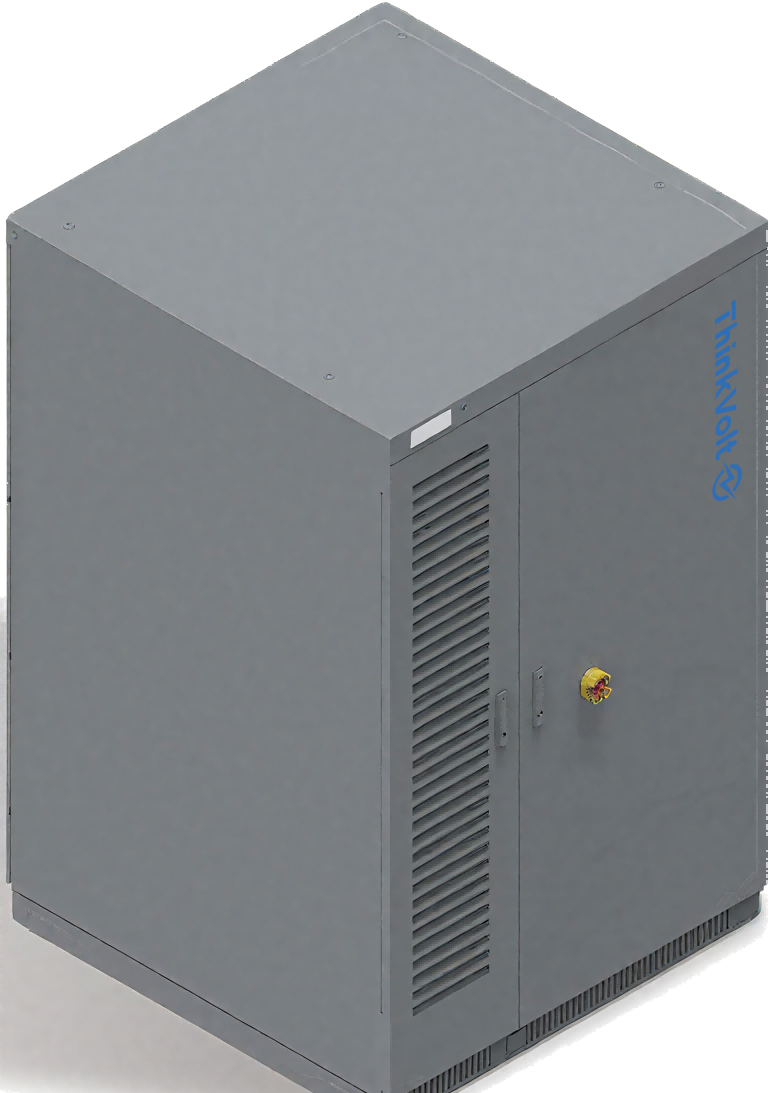

System-TV-50-129kwh-SP
50K - 129KWh liquid-cooled cabinet
| Item | Specifications |
|---|---|
| Model number | TV-50-129kwh-SP |
| Arrangement type | 1P144S |
| Cell capacity | 280Ah |
| Magnification | 0.5P |
| Inverter power | 50kw |
| Rated capacity | 280Ah |
| Rated energy | 129kWh |
| Rated voltage | 460.8Vdc |
| Operating voltage range | 360~518Vdc |
| Operating temperature range | -20℃ ~55℃ |
| Storage temperature range | -30℃ ~60℃ |
| Highest working altitude (meters) | ≤3000 |
| Battery temperature control method | Liquid cooling |
| Energy storage system fire protection system | Aerosol |
| Energy storage system communication interface | RS485/Ethernet |
| Energy storage system protection level | IP55 |
| Weight | 1.7t |
| Dimensions (Length * Width * Height) | 1000*1350*2065mm |
| Other configurations | DCDC\ATS |
100k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling
TV 2.5MW - 5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*12
Rated energy：5.015MWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
Inverter power：50kw*2
Rated energy：215kWh
Battery temperature control method：Liquid cooling
100K-215kWh liquid-cooled cabinet
Cell capacity：280Ah
Magnification：0.5P
PCS power：100kw
Rated energy：215kWh
Battery temperature control method：Liquid cooling
135k-261liquid-cooled cabinet
Cell capacity：314Ah
Magnification：0.5P
PCS power：135kw
Rated energy：261kWh
Battery temperature control method：Liquid cooling
100k-261liquid-cooled cabinet*5
Cell capacity：314Ah
Magnification：0.5P
PCS power：100kw*5
Rated energy：261kWh*5
Battery temperature control method：Liquid cooling
TV1.25MW-2.5MWh 20-foot container
Cell capacity：314Ah
Rated capacity：314Ah*6
Rated energy：2.507MWh
Battery temperature control method：Liquid cooling
PDS1-400K
HV DC bus voltage：LV voltage +40V ~ 900V
Cooling：Forced air cooling
Noise：<75dB
Size (W×H×D)：1100×2160×800mm
Installation：Floor standing
PWS1-500KTL-EX-8M1/PWS1-500KTL-EX-8M4/PWS1-500KTL-EX-8M8
Nominal power：500kVA1
AC max power：550kVA1
Battery voltage range：600~900Vdc
Cooling：Forced air cooling
48S liquid cooling module
System capacity：280Ah
System voltage：153.6V
Grouping method：1P48S
Dimensions (Length * Width * Height)：795*1125*228 mm
52S liquid cooling module
System capacity：314Ah
System voltage：166.4V
Grouping method：1P52S
Dimensions (Length * Width * Height)：1150*787*258.5 mm
104S liquid cooling module
System capacity：314Ah
System voltage：332.8V
Grouping method：1P104S
Dimensions (Length * Width * Height)：2170*790*247 mm
Isolation transformer
Rated Input Voltage：400V±3%
Rated Output Voltage：400V±3% 230V±3%
Rated Apparent Power：315kVA
Working Frequency：47.5 - 55Hz
Rated Load Line Current：453A
Liquid cooled energy storage cabinet
Energy storage capacity：215kWh/233kWh/249kWh
Rated power：105KW/120KW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage cabinet
Energy storage capacity：372kWh/400kWh
Rated power：200KWh
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage system
Energy storage capacity：3350kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP65
Liquid cooled energy storage system
Energy storage capacity：2600kWh
Auxiliary power supply：~20kW
Cooling mode：Liquid cooling
Protection level of electric box：IP67
Air-cooled energy storage system
Energy storage capacity：645kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
Air-cooled energy storage system
Energy storage capacity：1075kWh
Auxiliary power supply：~20kW
Cooling mode：Air cooling
Protection level of electric box：IP20
