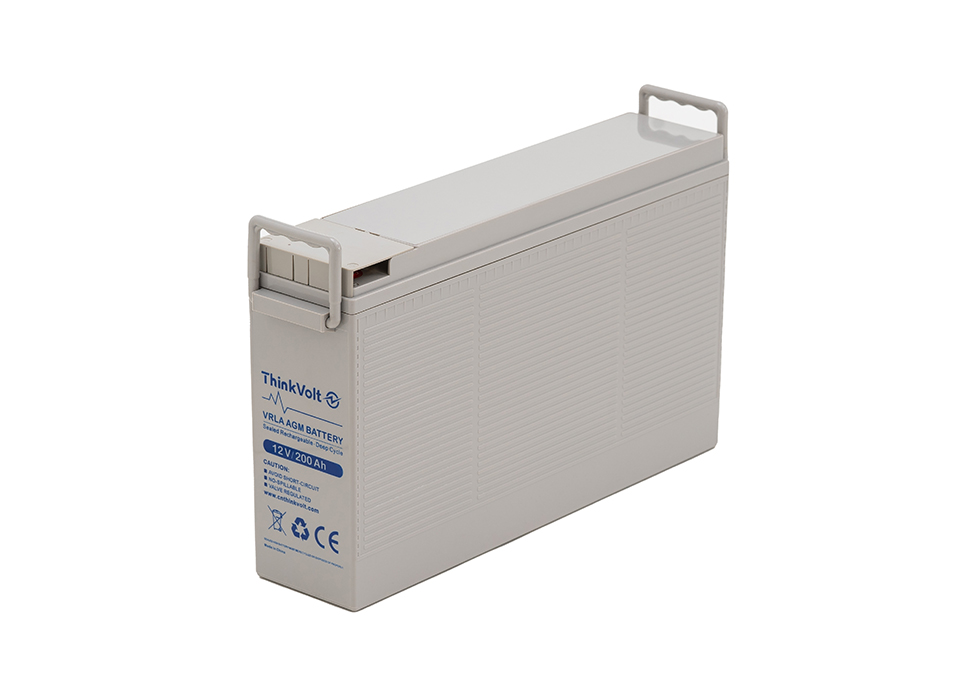

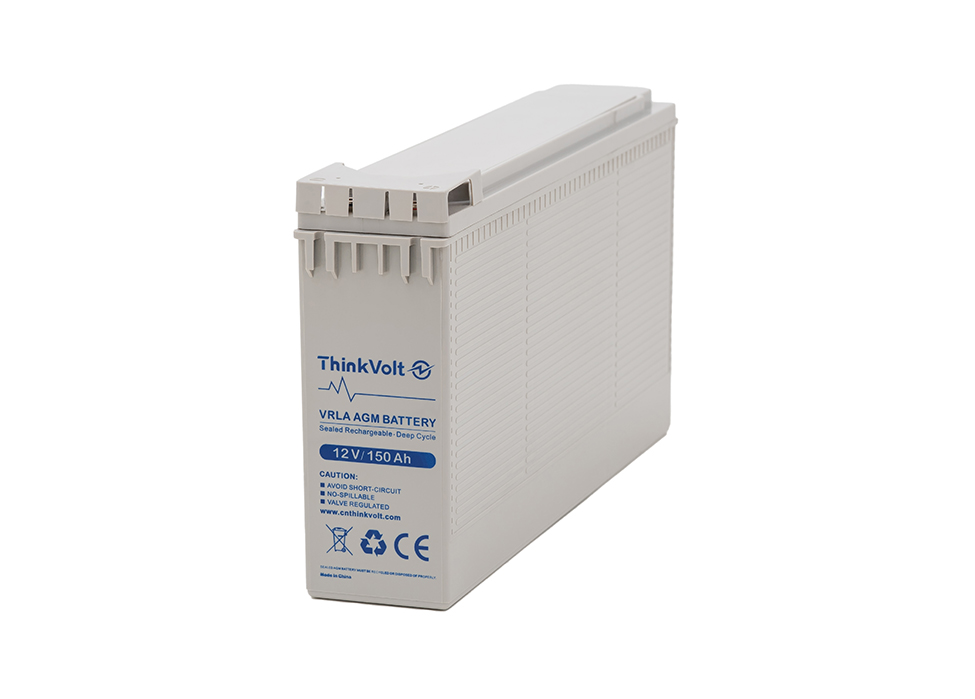

VRLA Front Terminal Battery
This series (TVF) optimizes space and reliability for power-critical infrastructure, including communication network cabinets, localized area network systems, and UPS-backed power stations.
Featuring front-terminal design and compact AGM construction, it simplifies rack-mount installation in tight spaces.
Reinforced terminals and corrosion-resistant alloys ensure stable connections for high-current applications like grid monitoring and emergency power transfer, along with vibration-proof casing rated for industrial-grade durability.
The TVF Series slashes energy waste and maintenance costs for hyperscale network operators.
Customizable terminal layouts and global 24/7 technical support guarantee seamless integration into mission-critical cabinets and substations.
ThinkVolt – Powering mission-critical operations with proven durability and ROI.
Request a Custom Quote
Product Features of TVF Series
  • • Rated voltage: 12V
    • Series Capacity Range: 100Ah, 150Ah, 170Ah, 200Ah
  • • 12+ years design life (25℃)
    • Puncture resistant micro-porous glass mat
    • Separators extend life
  • • Flame-arresting
    • One-way pressure-relief vent
    • Safety and long life
  • • Front access design
    • Easy installation and maintenance
  • • Epoxy-sealed posts eliminate leaks
    • UL,CE Approved
Applications of TVF Series
Product Model
NO.ModelVoltage
/V		Capacity
/Ah		Dimension/mm
Dimension/in
Weight
/kg		Weight
/1bs		Terminal
/type
LWHTotal
Height		LWHTotal
Height
1TVF12-10012100508110238.5238.520.004.339.399.3932.0070.55T6
2TVF12-15012150550125281.5281.521.654.9211.0811.0850.60111.55T6
3TVF12-17012170550125281.5281.521.654.9211.0811.0851.00112.43T8/T11
4TVF12-2001220056012632032022.054.9612.6012.6061.00134.48T11
