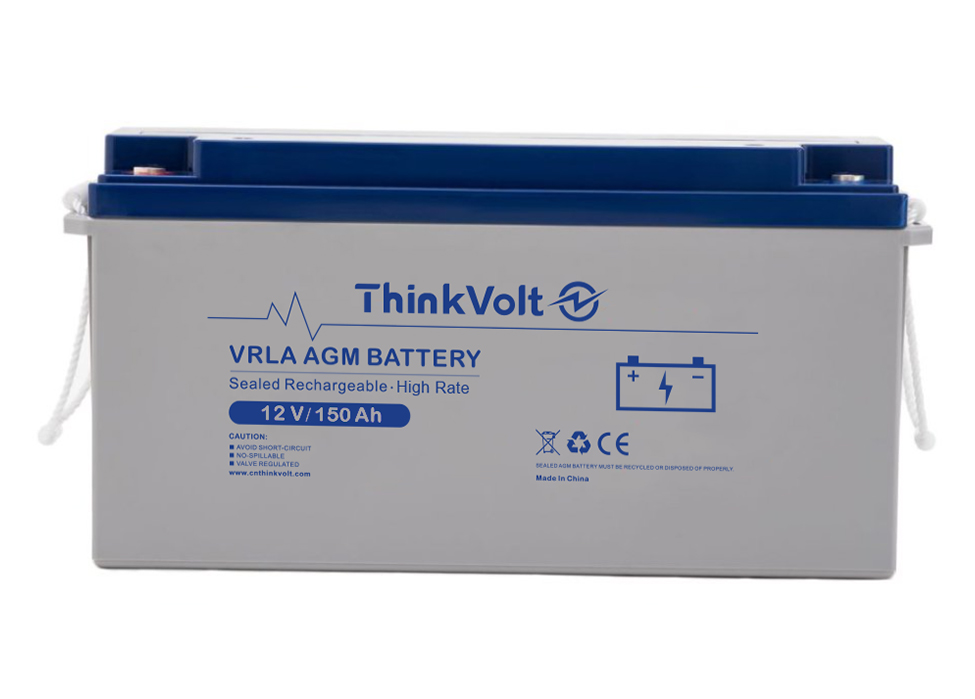

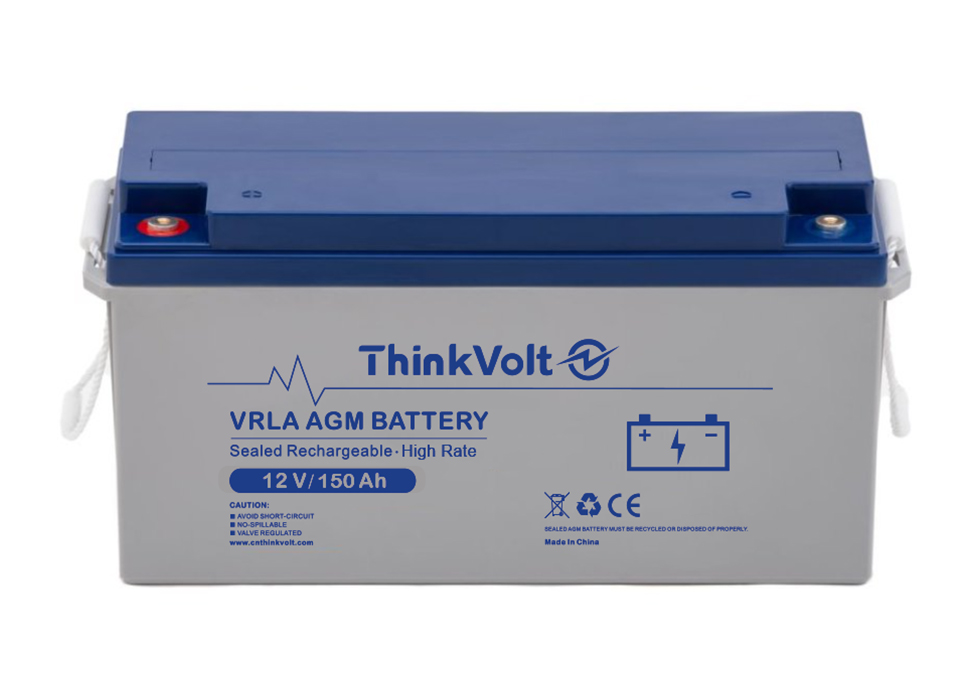

VRLA High Rate Battery
This series (TVH) excels in high-rate discharge and instant power delivery for mission-critical environments like data centers, intelligent computing hubs, and emergency lighting systems.
Built with reinforced AGM technology, it provides rapid-response backup for UPS systems, high-power industrial equipment, and electric starting applications.
Engineered to sustain 3C discharge rates and sub-second response times, the series ensures uninterrupted operations during grid failures, featuring a broad operating range (-15°C~50°C) and vibration-resistant construction for server racks and harsh industrial settings.
Offering higher energy density than standard models, the TVH Series minimizes footprint while maximizing uptime for hyperscale computing and automated facilities.
Supported by 24/7 global expertise and customizable voltage/capacity configurations, it bridges reliability and scalability for high-stakes power demands.
ThinkVolt – Powering mission-critical operations with proven durability and ROI.
Request a Custom Quote
Product Features of TVH Series
  • • Rated voltage:12V
    • Series Capacity Range: 27Ah, 100Ah, 130Ah, 150Ah (25℃)
  • • Excellent high rate discharge performance
  • • High energy density
    • Saves installation space
  • • Fast charging
    • Advanced Valve Control AGM Technology
  • • Easy vertical installation
    • 12 years design life (25℃)
Applications of TVH Series
Product Model
NO.ModelVoltage
/V		Capacity
/Ah		Dimension/mm
Dimension/in
Weight
/kg		Weight
/1bs		Terminal
/type
LWHTotal
Height		LWHTotal
Height
1TVH12-2712271641251661756.464.926.546.897.9017.42T12
2TVH12-1001210033017321322012.996.818.398.6632.0070.55T11
3TVH12-1301213046116820520518.156.618.078.073781.57T11
4TVH12-1501215048317422722719.026.858.948.9446.00101.41T11
